European Adjustable Steel Props

European Standard（Heavy-Duty）Props

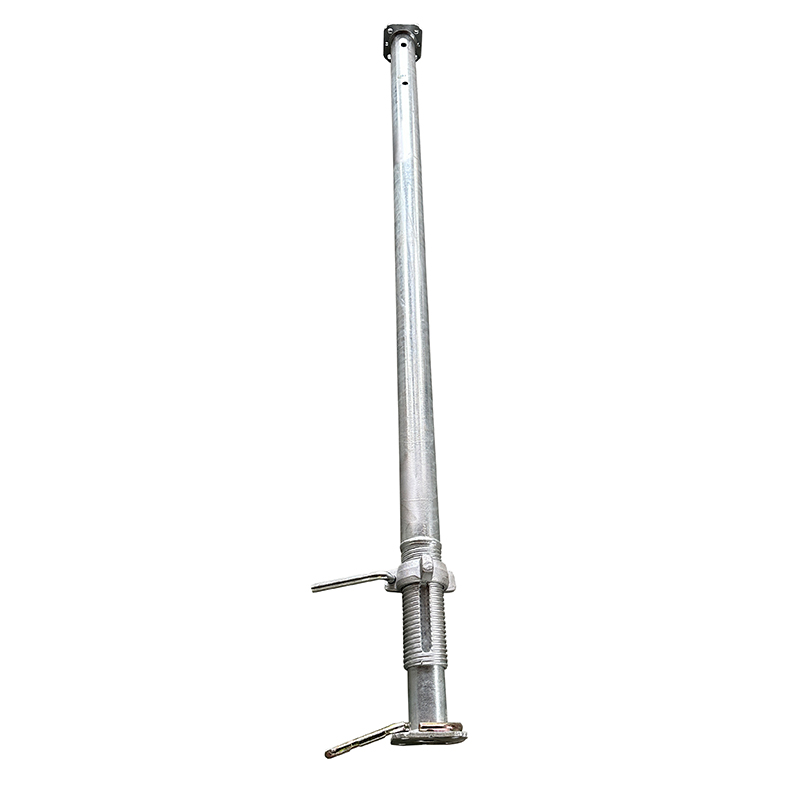

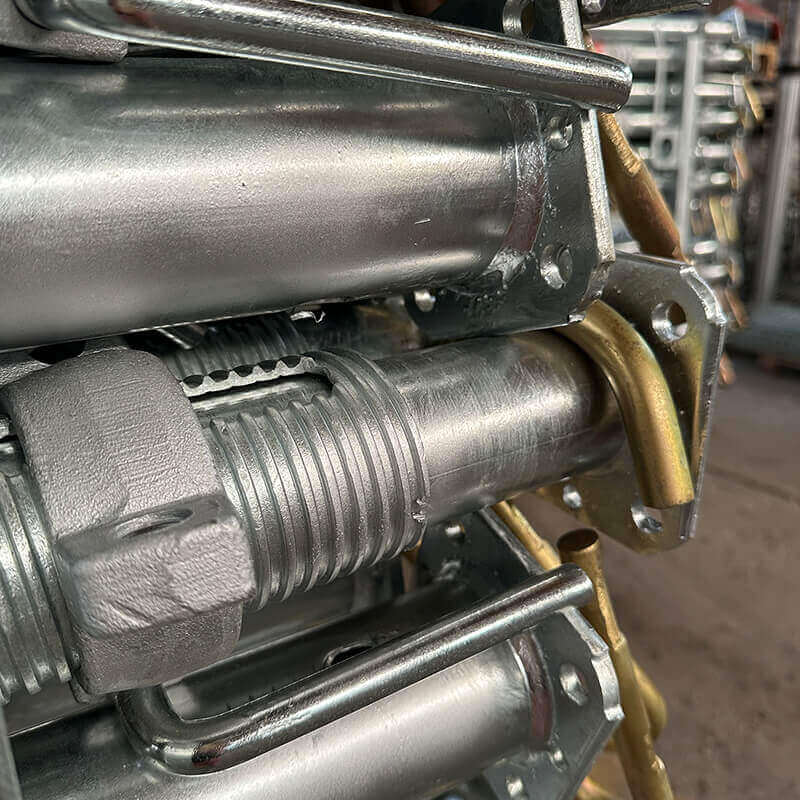

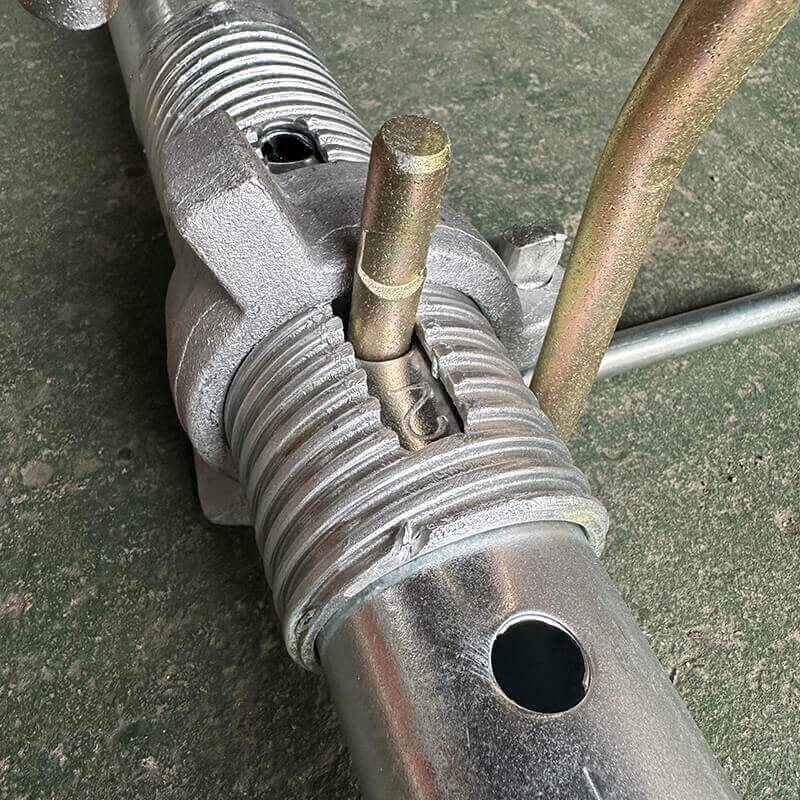

U GOOD European Adjustable Steel Props according to EN1065 standards.It’s heavy duty props with high load capacity,widely use for slab,beam supporting system,surface normally use hot dip galvanized,the nut is forged with strong bearing capacity,the use life usually more than 10years.

Specification:

Type	Thickness /mm	Minimum length/ m	Maximum length/m	Outer tube diameter / mm	Inner tube diameter / mm
E-20~350 L	2.75	2.0	3.5	66	54
E-20~350 H		2.0	3.5	76	63.5
E-20~400 H		2.2	4.0	76	63.5
E-20~550 H	2.75 ~ 3	3.0	5.5	89	76
E-30~350 H	2.75 ~ 3.8	2.0	3.5	76	63.5
E-30~400 H	2.75 ~ 3	2.2	4.0	89	76

Features：

● Usually, the max bearing capacity of each type is based on the max length of the bearing capacity, and the max bearing capacity is 2T or 3T

● Depending on the situation, the max bearing capacity, height, pipe diameter, galvanizing method and galvanizing thickness of steel prop can be customized

● The inner tube is made of Q345 and the outer tube is made of Q235

● E-20~ 350L indicates the light steel prop with a bearing capacity of 2T when the max length of the European standard is 3.5m; E-20~350 H indicates the heavy steel prop with a bearing capacity of 2T when the max length of the European standard is 3.5m
