Auto Climbing Formwork

U GOOD Auto Climbing Formwork with the integrated design,the formwork climbs up and down together with the guide rail.The principle is this type formwork has embedded wall attached components and takes the wall as the supporter,the guide rail and frame are lifted through the hydraulic system and anti-fall climbing device.

Specifications：

No.	Project	Unit	Technical Parameters
1	Max width of frame	m	2.1
2	Install height of frame	m	15.0/11.0/9.0
3	Max span distance of main bearing frame	m	5.0
4	Allowable cantilever length	m	3.0
5	Allowable climbing level height	m	3 ~ 6
6	Control speed of climbing	mm/min	70 ~ 150
7	Climbing distance	mm	150
8	Climbing accuracy	mm	±20
9	Formwork horizontal distance	mm	200 ~ 600
10	Working load/Single cylinder	KN	80
11	Lifting jack working distance	MM	150
12	Lifting jack rated pressure	MPa	16
13	Upper operation platform rated pressure	KN/m²	5
14	Lower operation platform and construction loading	KN/m²	1
15	Mainly Formwork System	/	Assembly steel formwork, wood formwork, aluminum formwork
16	Hydraulic control pattern	/	Control center

Advantages:

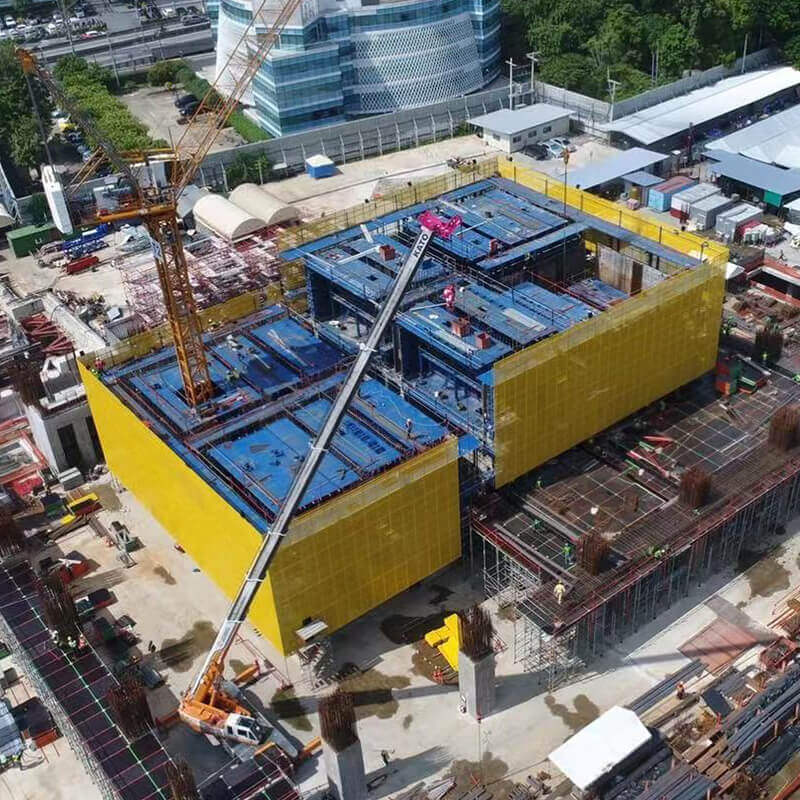

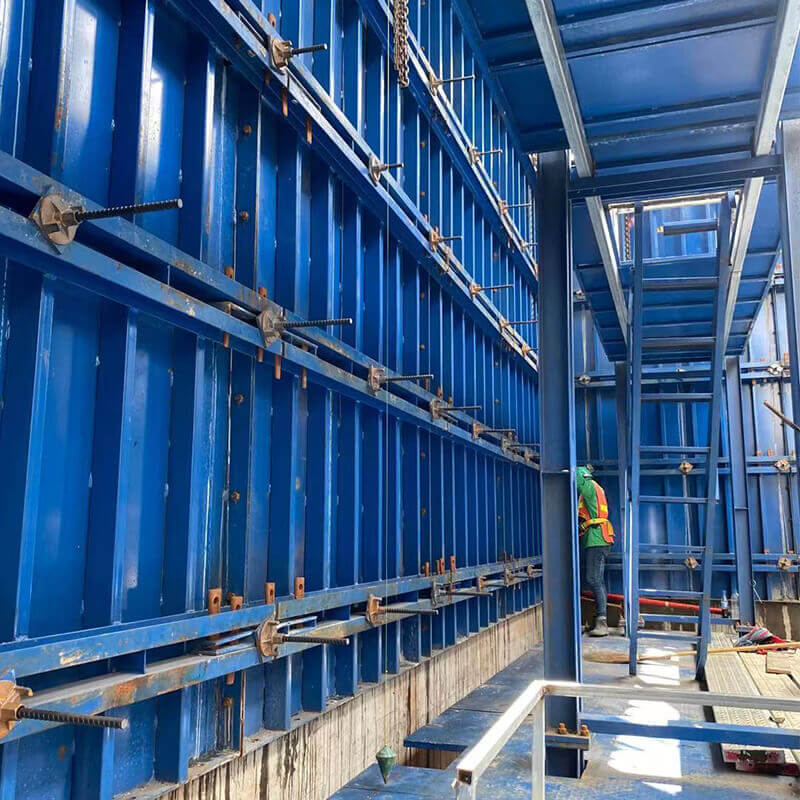

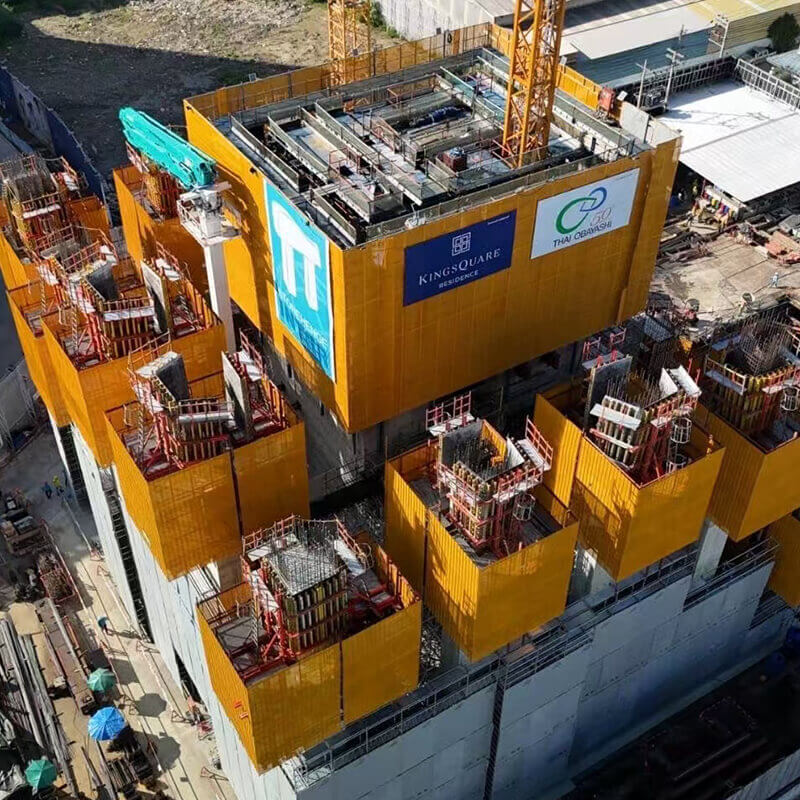

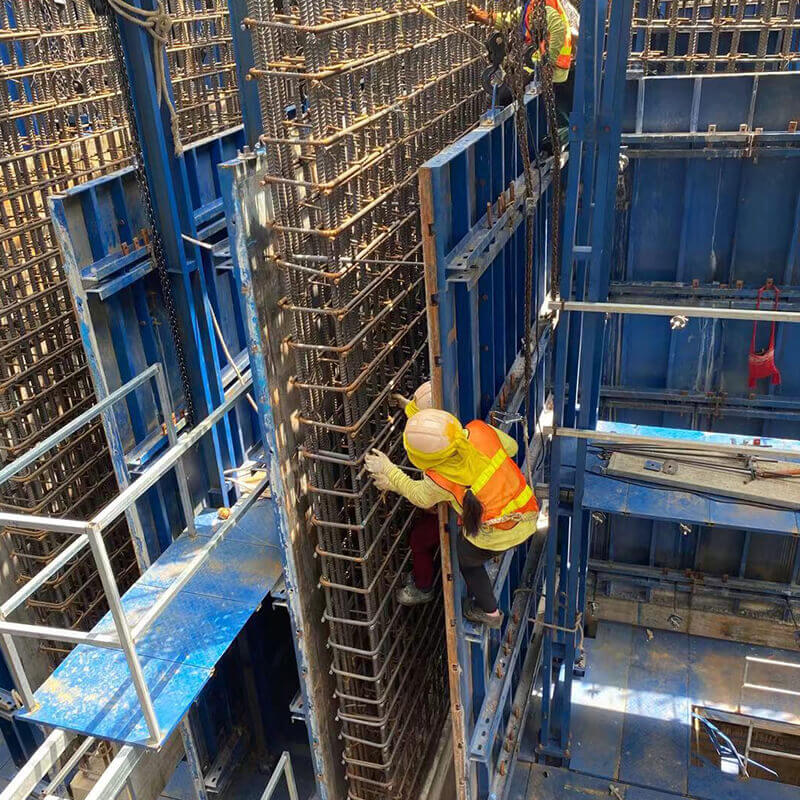

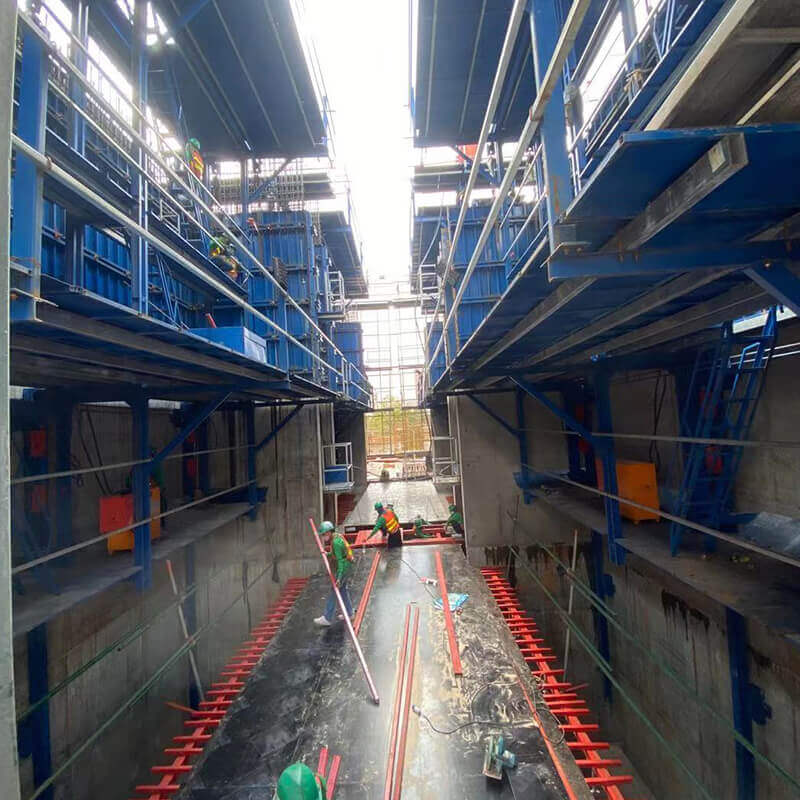

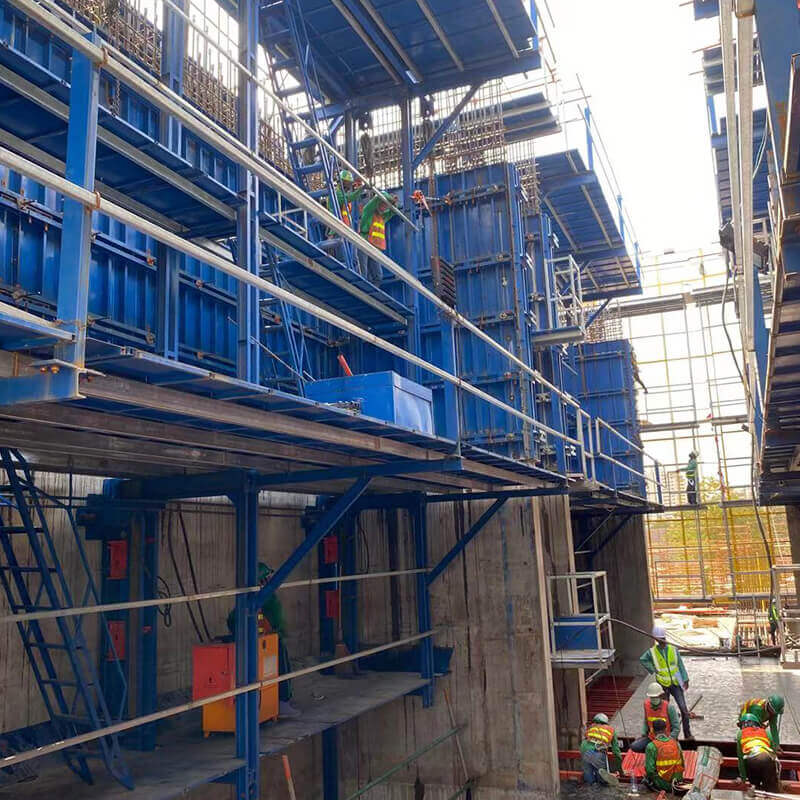

● Safe,Each operation site has a platform,so the dismantling and cleaning of the template,the tying of the rebar,and the concreting are working inside of the formwork keeps the workers safe.

● The assembled large area formwork has more accurate location and brings better quality in construction.

● Installation and adjusting floor by floor,the deviation will be absorbed in the next floor,so that the deviation will not be accumulated with the increasing stories.

● All the integrated formworkcouldclimb together or separately and stop until reaches the top.Except the first installation,the crane will not be occupied during the construction.

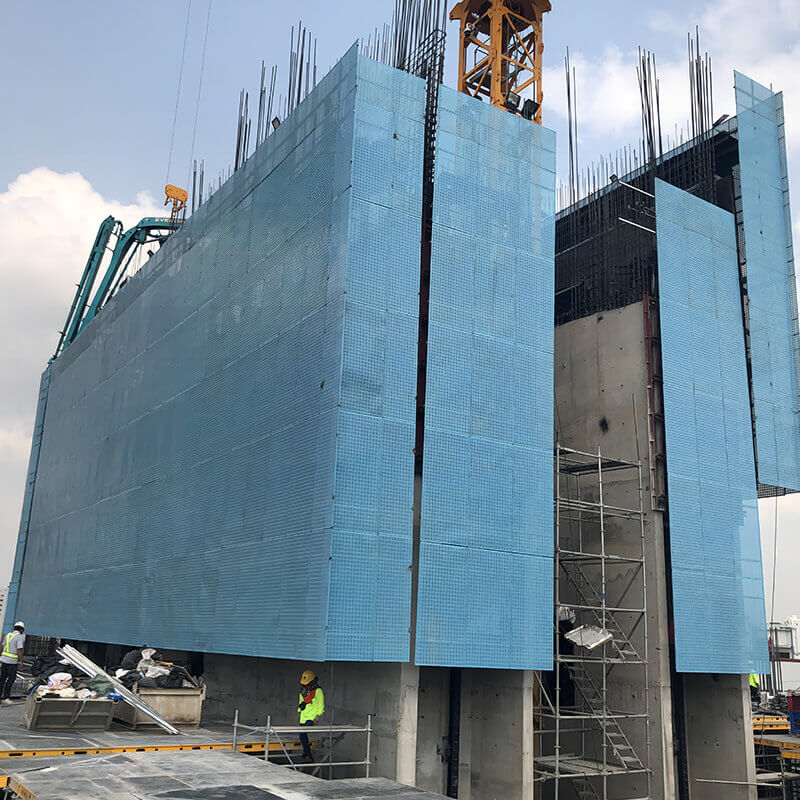

● Fireproofing,with integrated all-steel and fully-enclosed structure and the galvanized hole punched mesh,the formwork is fireproofing,safe,and tidy.
